Dy High Efficiency Industrial Saw Dust Vibrating Screen
Product Description
Introduction

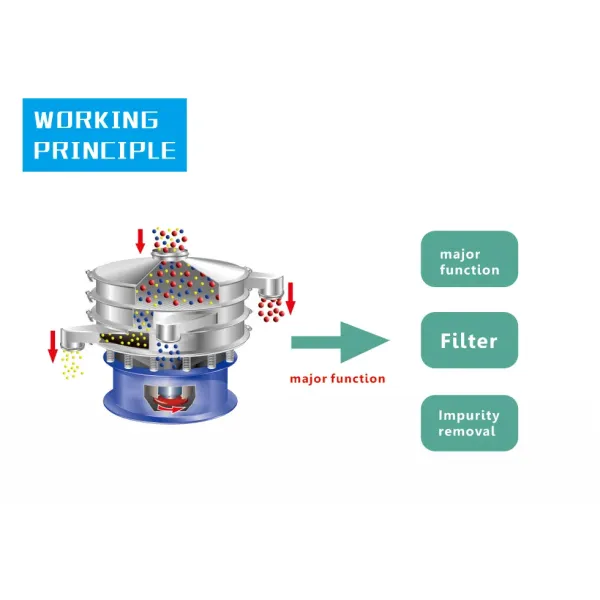

Rotary vibrating screen uses upright motor as the source of vibration, and it is equipped eccentricity hammer on the both sides of motor. Adjust the phase angle on the both sides of the top and bottom to change the movement orbits of the screen surface. It can be equipped with screen cloth cleaning device to avoid clogging effectively. The vertical horizontal and inclined movement of the machine, the track of materials on the screen can be controlled by adjusting the angle of the two eccentric weights.

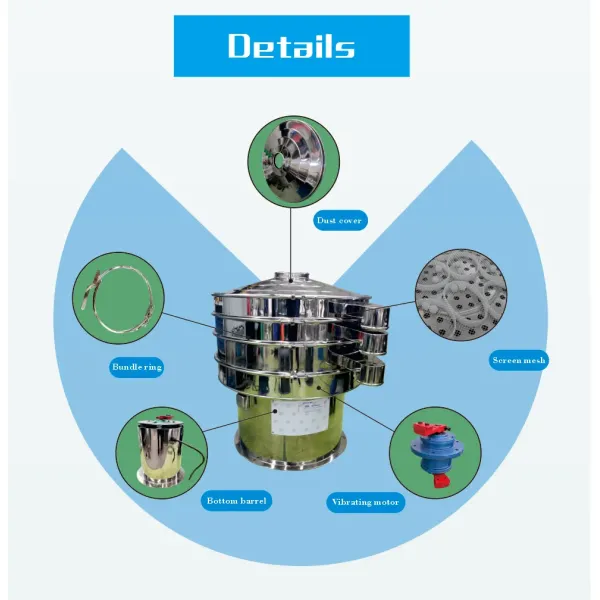

Detailed Photos
Main Features
- Compact and lightweight design with a small footprint, which effectively saves installation space.
- The discharge port direction is flexible and adjustable, enabling automatic separation and discharge of coarse and fine materials.
- It prevents screen clogging and dust emission; the maximum fineness can reach 500 mesh (28 microns) for screening and 5 microns for filtration.
- The single-layer rotary vibrating screen adopts a unique frame structure, prolonging the service life of the screen mesh. Mesh changing is fast and convenient, only taking 3–5 minutes, with simple operation and easy cleaning.
- Without complicated mechanical structures, the equipment is easy to maintain. It can be designed as single-layer or multi-layer. All material-contact components are made of stainless steel (not for medical use).
- It is applicable for screening various materials, including solids, liquids, powders, granules and slurries within a specified range.
Product Parameters
| Model |
Power(kw) |
Valid Diameter of screen(mm) |
Volume(mm) |
Layers |
DY-600-1S
DY-600-2S
DY-600-3S |
0.55kw |
550mm |
800*800*680
800*800*780
800*800*880 |
1
2
3 |
DY-800-1S
DY-800-2S
DY-800-3S |
0.75 kw |
750mm |
900*900*780
900*900*930
900*900*1080 |
1
2
3 |
DY-1000-1S
DY-1000-2S
DY-1000-3S |
1.5 kw |
950mm |
1160*1160*880
1160*1160*1030
1160*1160*1180 |
1
2
3 |
DY-1200-1S
DY-1200-2S
DY-1200-3S |
1.75 kw |
1150 mm |
1360*1360*980
1360*1360*1160
1360*1360*1360 |
1
2
3 |
DY-1500-1S
DY-1500-2S
DY-1500-3S |
2.2 kw |
1450mm |
1850*1850*1130
1850*1850*1330
1850*1850*1550 |
1
2
3 |
DY-1800-1S
DY-1800-2S
DY-1800-3S |
3 kw |
1750mm |
2200*2200*1360
2200*2200*1460
2200*2200*1680 |
1
2
3 |
Customer Case
Application Industry
Applicable Industry
- Food industry: sugar, salt, alkali, monosodium glutamate, starch, milk powder, yeast powder, pollen, food additives, soybean milk, fruit juice, etc.
- Chemical industry: resin pigments, Pharm-aceuticals, grease, coatings, colorants, etc.
- Pharmaceutical industry: pills, tablets, capsules, granules
- Abrasives and ceramics industry
- Construction industry: sand, cement, pebbles
- Plastics industry
- Organic fertilizer industry
- Machinery industry: foundry sand, powder metallurgy, electromagnetic materials, metal powder, etc.
- Paper-making industry: coating slurry, drainage, papermaking fluid, wastewater recycling, etc.
Company Profile
Xinxiang Dayong Vibration Equipment Co., Ltd. is a international manufacturing factory with research and development, design, production and sales services, it is committed to providing customers with reasonable and efficient screening, conveying and crushing equipment design solutions. The company have more than 100 employers, and setted with R & D, technology and other departments, of which graduate students, college education accounted for more than 80%. The company is located in Henan, Xinxiang province. The main products are divided into: Fine screening equipment (lab sieve shaker; vibro screen; ultrasonic vibrating screen; flour screen; rotary sifter; liquid sifter; tumbler screener; linear vibrating screen; gyro screen, etc.); Mining screen equipment (roller or trommel screen, circular vibrating screen; heavy linear vibrating screen; probability screen; dewatering sieve; stack sieve etc.) Conveyor equipment (belt conveyor, screw conveyor, bucket elevator, etc.) Crushing equipment (hammer crusher, jaw crusher, etc.) The pruducts has passed the ISO9001 quality system and CE certification, and all the equipment fittings are famous brand in China. The equipment is not only popular in China and have been exported to the United States; Australia; Russia; Britain; Spain; Germany; Japan; Holland; Poland; Turkey; Oman; Philippines; Thailand; Indonesia; Singapore and other countries and regions.
Packaging & Shipping
FAQ
a: Customers who are familiar with technical performance and parameters can directly order.
It appreciate If you send us the pictures you have ever used.
b: Customers who need us to choose the models, please tell us follow the information:
Name and feature of the raw material? Aim of using: get rid of impurity, filtration, grading Handling capacity: kg /h, L/h The raw material size: (mesh or mm) How many final materials you want, or how many layer you need? It appreciate If you send us the relevant pictures about the details.
c: How many kinds of material are supported?
All stainless steel (304, 316L) All carbon steel Q235A Contact part Stainless steel.
d: Is it special requirement available?
Yes, the equipment could be designed according to customer's using aim or special requirements.
